30KW 40KW Fast EV Charger OCPP Electric Vehicle Charging Stations

Name: 30KW 40KW Fast EV Charger OCPP Electric Vehicle Charging Stations
Brand: Hochiry
Price: 1 USD

Buy cheap 30KW 40KW Fast EV Charger OCPP Electric Vehicle Charging Stations product

Brand Name : Hochiry

Model Number : Hochiry-PS-100KW

Place of Origin : CHINA

Products Name : Fast Electric Car EV Charging Stations

Charging Port : 2 ports, 1port

Connector Type : CCS Combo 2

Payment Method : RFID Card, APP

Output Voltage : 150-1000VDC

Connection : CCS 1, CCS 2

Protection : IP54

Maximum Output Current : 200ADC

Contact Now

EV 30kw 40KW Fast DC EV Charge For Electric Car, OCPP Electric Vehicle Car EV Charging Stations
Main features:Simple and compact:
Support column and wall mounting methods, occupy a small space, and take care of both operation and home use

Security:
With SOC overcharge protection, battery overcharge protection, BMS data abnormal diagnosis, vehicle battery voltage abnormal detection, leakage, lightning protection and other active protection functions

Strong compatibility:
Wide voltage output design, compatible with new and old national standards, interoperability, real-vehicle joint debugging test, applicable to various brand models
Products Description
HCR-PEVC3401E is mainly used in scenarios such as small ground and underground garage charging stations. The system is mainly composed of power modules, control. It is composed of unit, communication unit and protection unit, which can realize charging start, run, monitor and stop functions, it can be installed flexibly.
  	 			Model
 			HCR-PEVC3401E-30K1000N1
 			HCR-PEVC3401-40K1000N1

 			Power Suppply
 			3P+N+PE

 			Installation
 			Wall-mounted/floor-standing

 			THDi
 			≤5%

 			Efficiency
 			≥95%

 			Power Factor
 			≥0.98

 			Rated Voltage
 			400VAC±15%(50/60Hz)

 			Protection
 			IP54

 			Connector Type
 			CCS Combo 2

 			Output voltage
 			150-1000VDC

 			Maximum Output Current
 			200ADC

 			Output Power
 			30KW
 			40KW

 			Output Voltage Accuracy
 			≤0.5%

 			HMI
 			4.3 inch touch LCD screen

 			Output Current Accuracy
 			≤0.5%

 			Output Current Accuracy
 			≤±5%

 			Payment Method
 			RFID Card,APP

 			Cable length
 			5 Meters (Custom)

 			Network Connection
 			Cellular modem:GSM/3G/4GLAN:10/100 Base-T Ethernet

 			Communication Protocol
 			OCPP 1.6J

 			Operating Noise Level
 			≤60dBA

 			Protective function
 			Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection

 			Power Meter
 			Accuracy Class 1 energy meter

 			Enclosure
 			Galvanized steel

 			Product Dimension
 			700 x 550 x 1800mm(W x D x H)

 			Package Dimension
 			950 x 720 x 1950mm(W x D x H)

 			Maximum Installation Height
 			≤2000 meters

 			Operating Humidity
 			5%–95% RH

 			Operating temperature
 			-35℃ to +50℃

 			Storage temperature
 			–40°C to +75°C




Product Tags:

40KW Fast EV Charger

OCPP Electric Vehicle Charging Stations

1000VDC Electric Vehicle Charging Stations

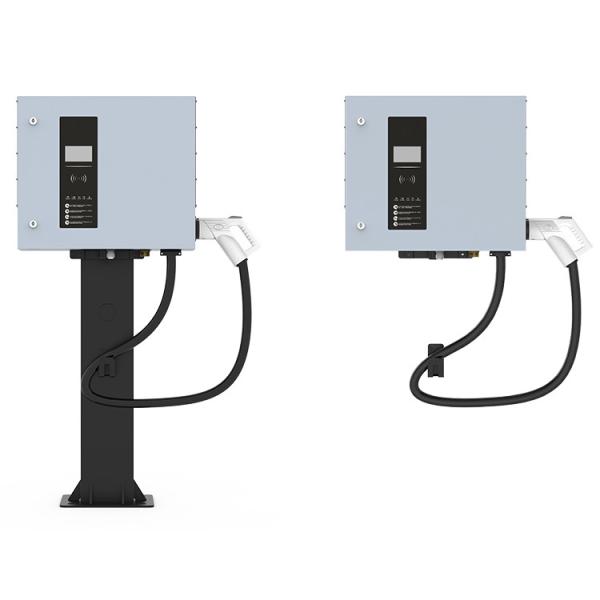

30KW 40KW Fast EV Charger OCPP Electric Vehicle Charging Stations Images
