Figure 8 Outdoor Fiber Optic Cable Self Supporting 12 Core Armored Aerial GYTC8A

  • 1
  • 2

Brand Name : Hochiry

Model Number : GYTC8A/GYTC8S fiber optic cable outdoor

Certification : CE/ROHS/ISO9001/ANATEL

Place of Origin : CHINA

MOQ : 10000 meter

Payment Terms : T/T, Western Union, MoneyGram

Product Name : Fig 8 Fiber Optic Cable

Fiber Options : G652D ,G657A,OM1,OM2,OM3,OM4

Strength member : Steel Messenger wire

Jacket : PE PVC LSZH HDPE

Fiber Count : 2-60cores

Structure Type : Figure 8 Self-Supporting Armored

Application : Aerial

Length : 2km or customized length

Contact Now

Figure 8 Self-Supporting Armored GYTC8A Fiber Optic Cable Outdoor

Description:



The structure of GYTC8AS cable is to put 250µm optical fiber into loose tube made of high modulus material, which is filled with waterproof compound. The cable core is wrapped in a plastic-coated steel and integrated with the steel strand into an 8-figure polyethylene sheath. Figure-8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations.

Features:


GYTC8A cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier


Technical Parameters:



Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weigh Long/Short Term Long/Short Term Static/Dynamic
        mm kg/km N N/100mm mm
GYTC8A-2~6 2~6 1 4 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-8~12 8~12 2 3 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-14~18 14~18 3 2 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A -20~24 20~24 4 1 9.5×18.3 218 600/1500 300/1000 10D/20D
GYTC8A-26~30 26~30 5 0 9.5×18.3 218 600/1500 300/1000 10D/20D

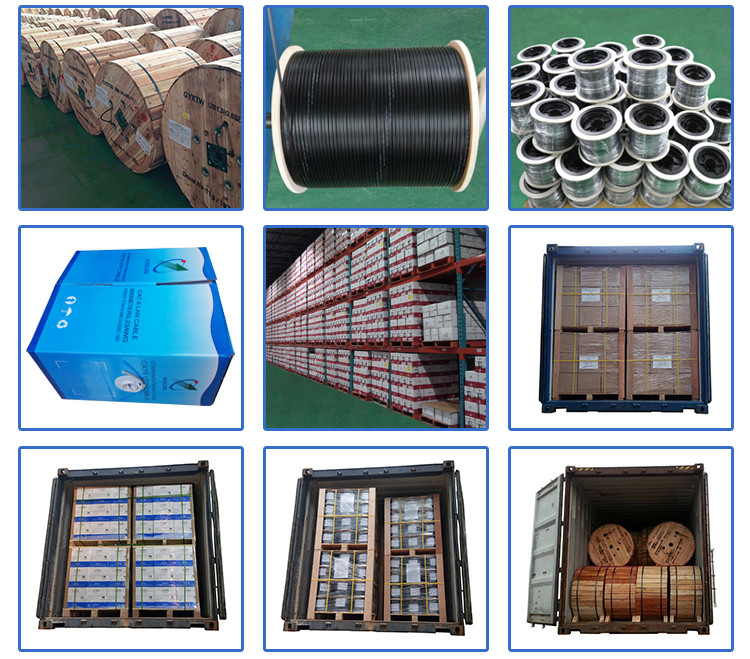

 Package and Delivery

Figure 8 Outdoor Fiber Optic Cable Self Supporting 12 Core Armored Aerial GYTC8A


Product Tags:

Figure 8 Outdoor Fiber Optic Cable



GYTC8A Outdoor Fiber Optic Cable



12 Core Armoured Fiber Optic Cable
